Structure and Composition / Main Components:

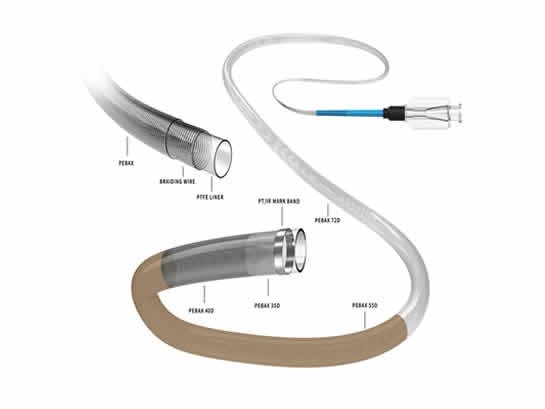

The microcatheter has a single-lumen structure and is mainly composed of the inner lumen of the catheter, the tip, the Markband, the outer layer of the catheter, the middle layer of the catheter, the stress support, and the catheter seat. The surface of the outer layer of the catheter is coated with a hydrophilic coating. An accessory shaping needle is included in the inner package of the microcatheter. Sterilized by ethylene oxide, single use. The shelf life is two years.
Scope of Application / Intended Use:
This product is used for general endovascular procedures, including the intravascular infusion of diagnostic agents (eg, contrast media) and therapeutic devices (eg, coils) in peripheral vessels, coronary arteries, and neurovascular vessels.
Product Main Features:
* Unique large lumen provides ease of instrument delivery and retrieval
* Distal coil reinforcement resists stent release resistance
* Rounded tip reduces damage to blood vessels during placement
Existing Sample and Specification:
ID = .025″ (.635 mm)
Proximal OD = 2.95 F (.983 mm)
Distal OD = 2.6 F (.867 mm)
Overall Length = 160 cm
Product Package:
* Individual Pack or Custom
* Hydrophilic Coating as per demands
